The Most Easy&Simple Way to Make Rigid Boxes

Today, we will introduce the Most easy and simple way to create rigid boxes with following small machines and tools.

A, Case Board Process

A-1, Cardboard Grooving process

Model No: Ky-52G

Max groove length: 52cm

Weight: 50kg

Size: 60cmX40cmX30cm

Demo Video:

A-2, Boards Corner Cutting process

Specification:

Model: Ky-430C

Max cutting size: 100mmX100mm

Machine size: 500X500X1300m

Weight: 190 Kg

Power: 1.5KW

Demo Video:

A-3, Board Corner Taping process

1. Single arm pressing device equipped with temperature controller.
2. Turn over box by hand, workable for varied kinds of boxes.
3. Environmental hot-melt adhesive tape is used to paste corner
4, The length of tape can be adjustable from 5mm to 35mm
5, Size of this Machine can be Customized

Minimum finished Case size:
40X40X10(mm)
Capacity: 1pcs/sec
Power:0.5HP/220V
Overall Dimension(L*W*H):
800X500X1400(mm)

Demo Video:

B, Sheets Glue Process

Model No: Ky-500G

Max glue width: 500mm

glue thickness: 40-300g/m

paper thickness: 0.5-10mm

speed: 0-28m/min, adjustable

Demo Video:

Optional Interested Machines&Tools

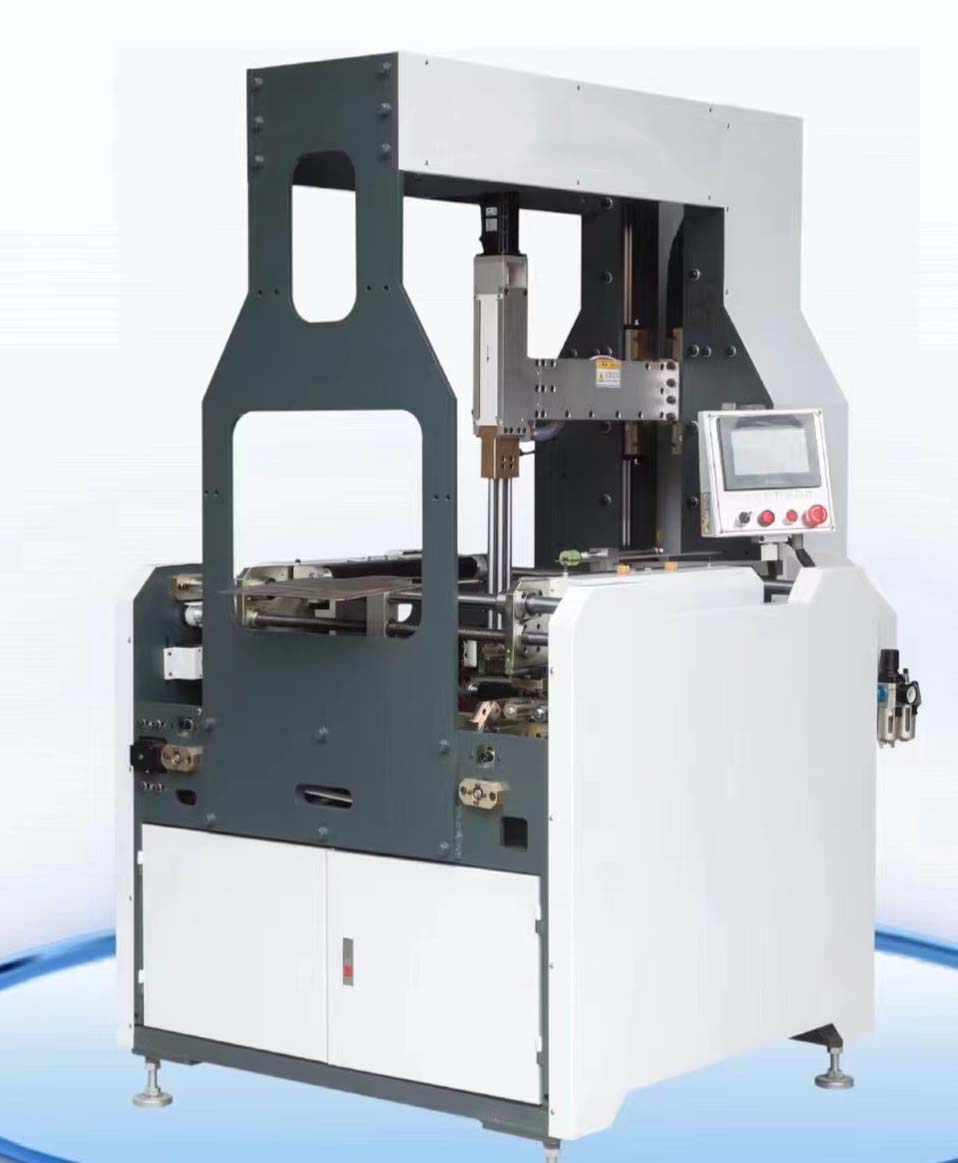

C, Box wrapping&Finishing

Specification:

Power supply: 220V/50Hz
Shape dimension(max): 480*410* 120mm
Shape dimension(min): 60*50* 10mm
Work speed: 18-24PCS/min
Mainframe power: 1.2kw
Machine dimension: 1000*1200* 1900mm
Machine weight: 700kg

Demo Video:

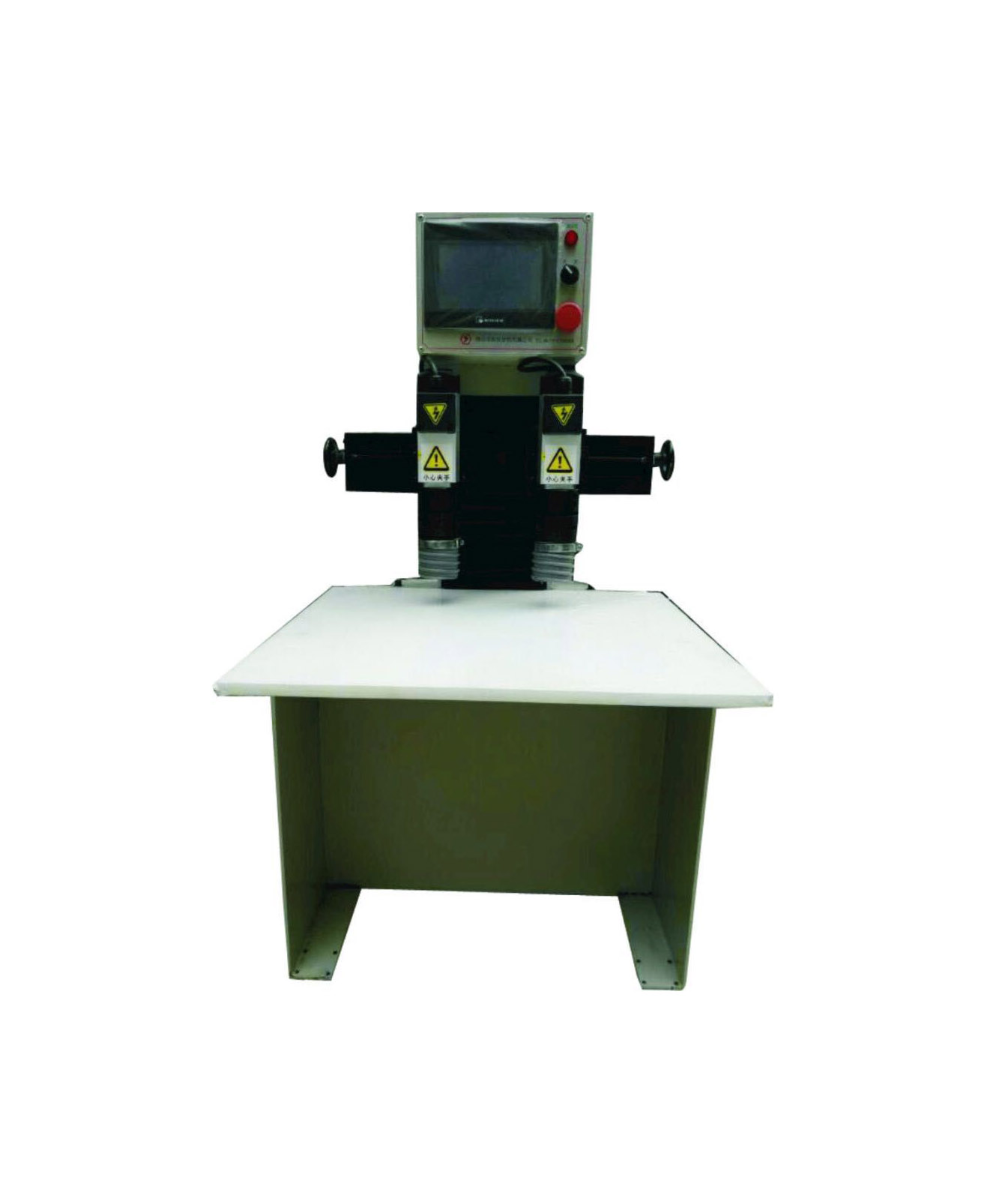

D, The Board hole making process

It is an ideal Machine for rigid box hole making process, before magnet pasting process.

Rigid box magnet pasting process.

Model No: Ky-12H

Model size: ∮10,12,14,15, 16mm）

Power: 220V、50/60Hz、2KW

Speed: 10-30pcs/min

Machine dimension:700×650×1100mm

Machine weight:122kg

Demo Video:

E, Box Thumb Cutter

Thumb cutter tool, easy process to make rigid boxes.

Model: Ky-600T

Tool size：600*320*180（mm）

Weight：14（kg）

Power：220v

Speed：30pcs(min)

thickness of cardboard：1-4（mm）

Demo video:

F, Box Press Proccess

Paper boxes pressing machines is used to avoid and press the bubble on the surface of the paper

Specification:

Finished Case Size(minimum):

100X80X15(mm)

Finished Case Size(Maximum):

360X500X100(mm)

Capacity:20-40pcs/min

Power:1HP/380V

Demo Video:

The original contects from kylin machine company limited
